ZYXEL · XMG2230-52

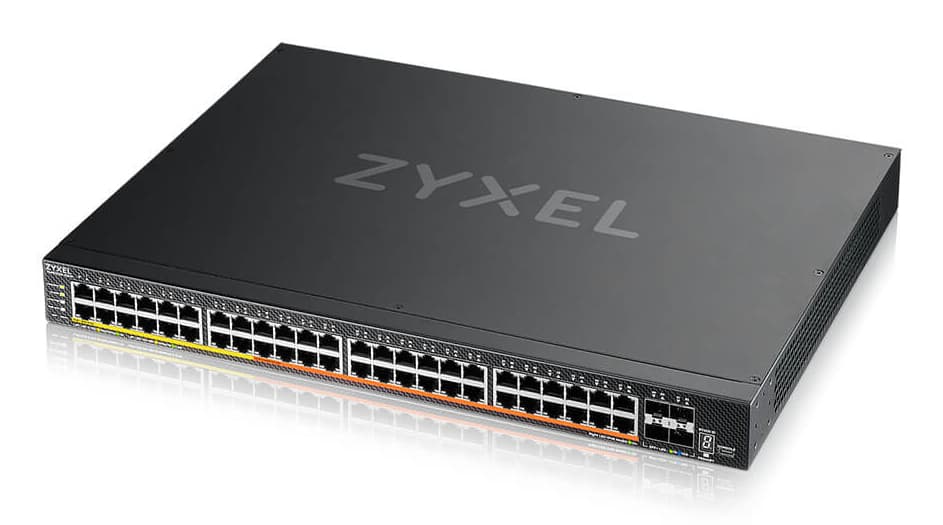

ZYXEL XMG2230-52HP
€ 1740,95incl. 21% VAT
Low stock · 2
Goes well with
Business or larger quantities? Request a quote
The ZYXEL XMG2230-52HP is a managed L2/L3 switch with 48 RJ-45 2.5G Ethernet ports (100/1000/2500 Mbps) and Power over Ethernet (PoE). It offers a switching capacity of 224 Gbit/s and supports network protocols such as IEEE 802.1D, 802.1Q, and 802.1ad. The switch features a 1U rack form factor and a black design. Connectivity includes an RJ-45/USB Type-C console port. Input voltage is 50-57 V DC.
EAN
4718937645336
Switch type
Managed
Switch Layer
L2/L3
Quality of Service (QoS)
Yes
Number of basic switching RJ-45 Ethernet ports
48
Type of basic switching RJ-4,5 Ethernet ports
2.5G Ethernet (100/1000/2500)
Virtual LAN Features
IP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Switching Capacity
224 Gbit/s
Forwarding Speed
166,6 Mpps
IPv4- & IPv6-Functions
Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet
Rack mounting
Yes
Form factor
1U
Power source
AC/PoE
Power Consumption (Max)
2525 W
Power over Ethernet (PoE)
Yes
Type Power over Ethernet (PoE) supports
PoE+, PoE++ (4PPoE)
Total Power over Ethernet (PoE) budget
2400 W
Height
44 mm
Weight
5,03 kg
