ZYXEL · XMG2230-28

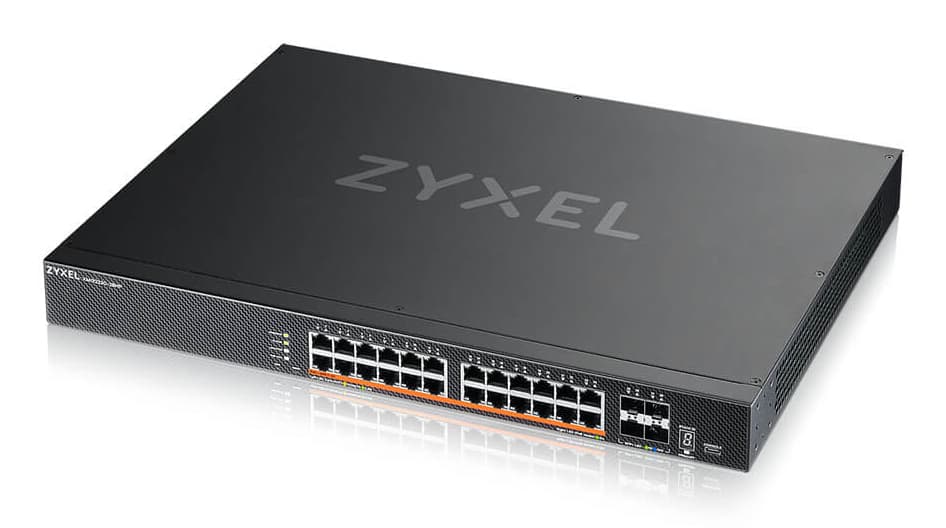

XMG2230-28HP - Managed L2/L3 - 2.5G Ethernet - PoE - 1U - Black
€ 1052,70incl. 21% VAT
Low stock · 8
Goes well with
Business or larger quantities? Request a quote
The ZYXEL XMG2230-28HP is a managed L2/L3 switch with 24 RJ-45 ports for 2.5G Ethernet (100/1000/2500 Mbit/s) and Power over Ethernet (PoE). It features a switching capacity of 200 Gbit/s and a MAC address table with 32,000 entries. The switch includes a console port (RJ-45/USB Type-C) and is rack-mountable in 1U form factor. It operates with a DC input voltage of 50-57 V and supports multiple IEEE network standards.
EAN
4718937645312
Switch type
Managed
Switch Layer
L2/L3
Quality of Service (QoS)
Yes
Cloud-managed
Yes
ARP inspection
Yes
Configure location settings (CLI)
Yes
Number of basic switching RJ-45 Ethernet ports
24
Type of basic switching RJ-4,5 Ethernet ports
2.5G Ethernet (100/1000/2500)
Number of SFP+ module slots
4
Console port
RJ-45/USB Type-C
Network standard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Copper Ethernet cabling technology
2.5GBASE-T, 100BASE-T, 1000BASE-T
Port mirroring
Yes
Policy-based routing
Yes
Routing entries
64
Broadcast storm control
Yes
Rate limiting
Yes
Virtual LAN Features
IP subnet–based VLAN, Policy-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
MAC Address Table
32000 entries
Switching Capacity
200 Gbit/s
Forwarding Speed
148,8 Mpps
Static route
Yes
Number of static routes
4000
Number of IP interfaces
32
Jumbo Frames Support
Yes
Jumbo frames
12
Packet Buffer Memory
2 MB
DHCP Functions
DHCP Option 60, DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 snooping
IGMP snooping
Yes
IGMP proxy
Yes
Supported security algorithms
SNMP, SNMPv2, SNMPv3
Static Port Security
Yes
SSH/SSL support
Yes
BPDU Filtering / Protection
Yes
IP-MAC-Port Binding
Yes
Authentication
Guest VLAN, MAC-based Authentication
Authentication type
IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+
Multicast support
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
IPv4- & IPv6-Functions
Dual stack IPv4/IPv6, ICMPv6, IPv6 Path MTU Discovery, IPv6 Telnet
Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product color
Black
LED indicators
Yes
Internal memory
1000 MB
Flash memory
64 MB
Sound Level
48,85 dB
Mean time between failures (MTBF)
554612,62 uur
Power source
AC/PoE
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
DC voltage input
50 - 57 V
Power Consumption (Max)
1519,1 W
Power over Ethernet (PoE)
Yes
Type Power over Ethernet (PoE) supports
PoE++ (4PPoE)
Total Power over Ethernet (PoE) budget
1440 W
Operating temperature (T-T)
-20 - 50 °C
Storage temperature
-40 - 70 °C
Heat Dissipation
2856 BTU/h
Depth
330 mm
Weight
4,53 kg
Package width
580 mm
Package depth
503 mm
Package height
95 mm
Package weight
6,81 kg
Compliance Certificates
BSMI, Low Voltage Directive (LVD), RoHS
Certification
FCC Part 15 (Class A)
CE EMC (Class A)
BSMI EMC
