ZYXEL · XGS1010-12
XGS1010-12 v2 12-Port Gigabit Unmanaged Desktop Switch
€ 155,36incl. 21% VAT
Low stock · 3
Goes well with
Business or larger quantities? Request a quote

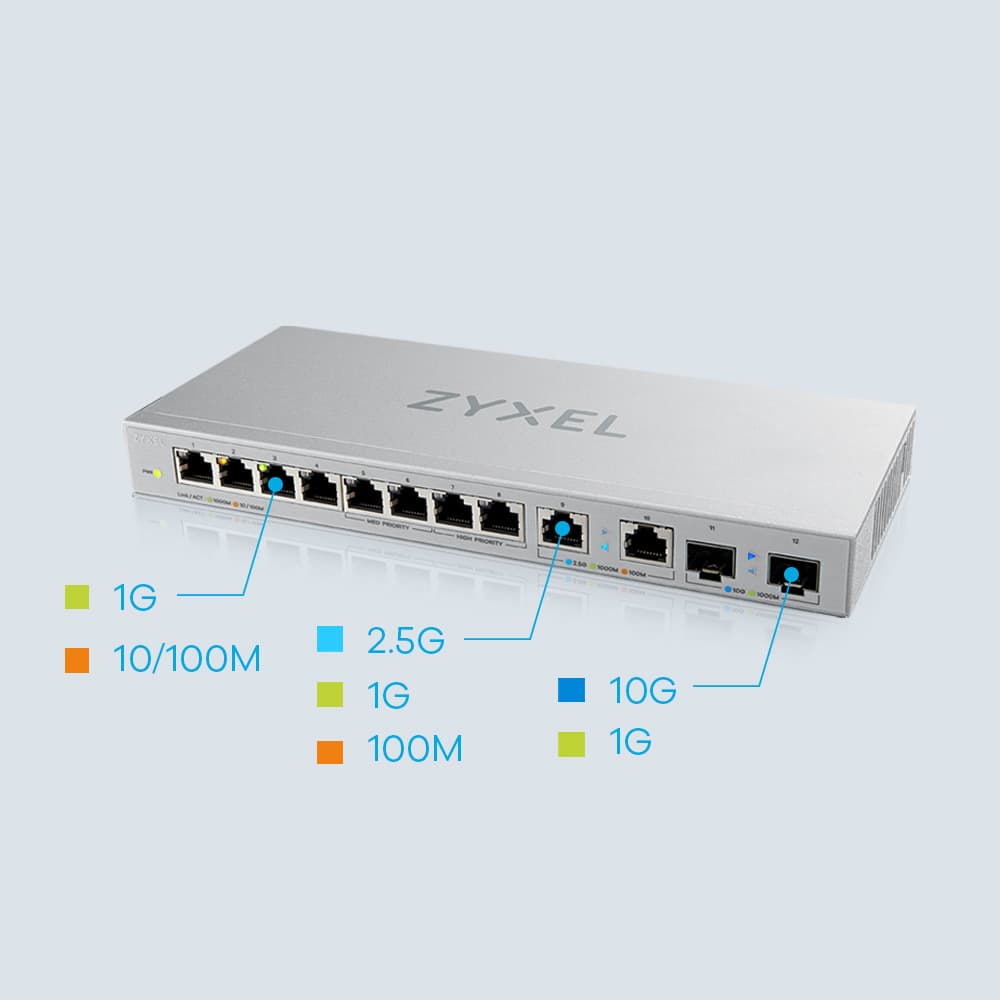

The ZYXEL XGS1010-12 v2 is a 12-port unmanaged Gigabit desktop switch featuring 8 x 1 Gbps ports, 2 x 2.5 Gbps copper ports, and 2 x SFP+ modules. It supports IEEE 802.3, 802.3ab, 802.3az, 802.3bz, 802.3u, and 802.3x standards. The switch operates in full-duplex mode and is designed for straightforward network solutions without advanced management features.
EAN
4718937633708
Switch type
Unmanaged
Quality of Service (QoS)
Yes
Number of basic switching RJ-45 Ethernet ports
8
Type of basic switching RJ-4,5 Ethernet ports
Gigabit Ethernet (10/100/1000)
Number of 2.5G Ethernet (copper) ports
2
Number of SFP+ module slots
2
Network standard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Data stream management
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN, data transfer speeds
10,100,1000 Mbit/s
MAC Address Table
16000 entries
Switching Capacity
66 Gbit/s
Forwarding Speed
49 Mpps
Jumbo Frames Support
Yes
Jumbo frames
12000
Packet Buffer Memory
1,5 MB
Access Control List (ACL)
Yes
Rack mounting
No
Product color
Gray
Reset button
Yes
LED indicators
Yes
Power source
AC/DC
Power supply included
Yes
AC input voltage
100 - 240 V
DC voltage input
12 V
Current
1.5 A
Power Consumption (Max)
15,61 W
Power over Ethernet (PoE)
No
Operating temperature (T-T)
0 - 40 °C
Storage temperature
-40 - 70 °C
Depth
104 mm
Weight
768 g
Package width
306 mm
Package depth
225 mm
Package height
64 mm
Package weight
1,22 kg
Harmonized System Code (HS)
85176990
