NEOMOUNTS · DS70P450BL

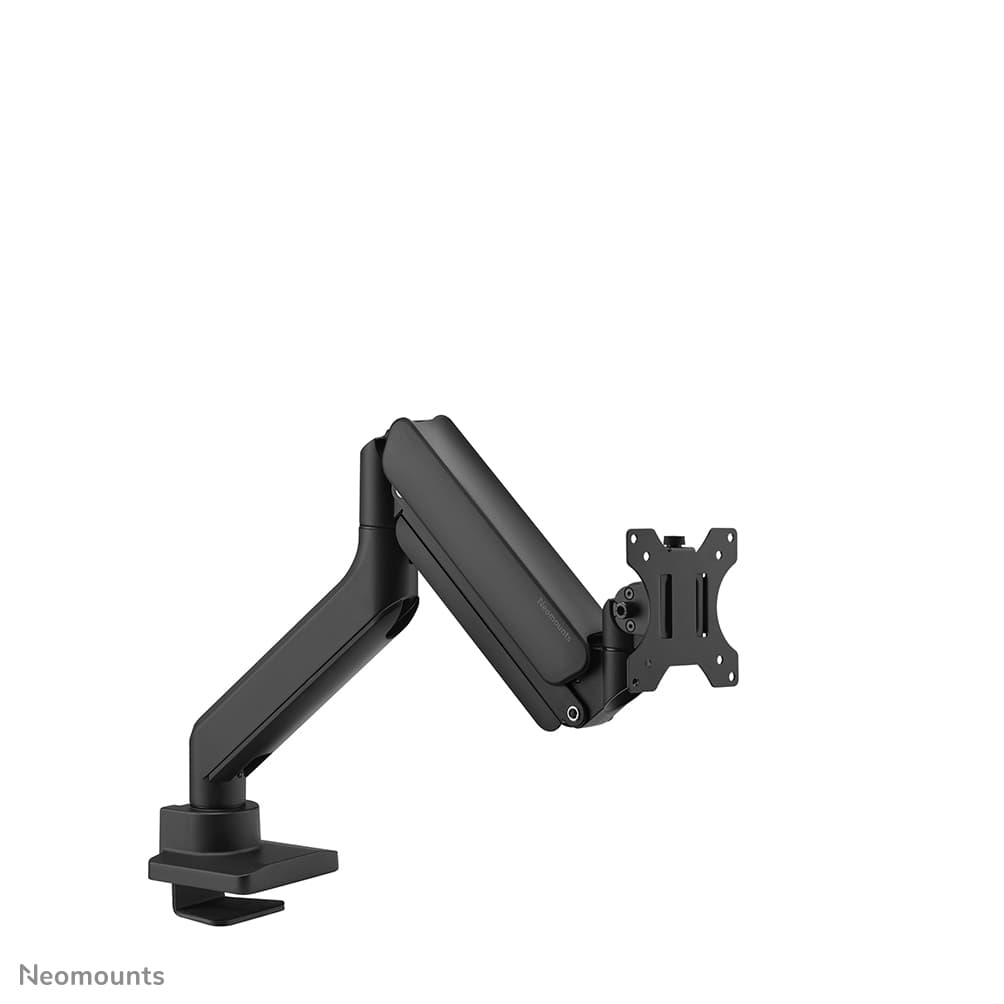

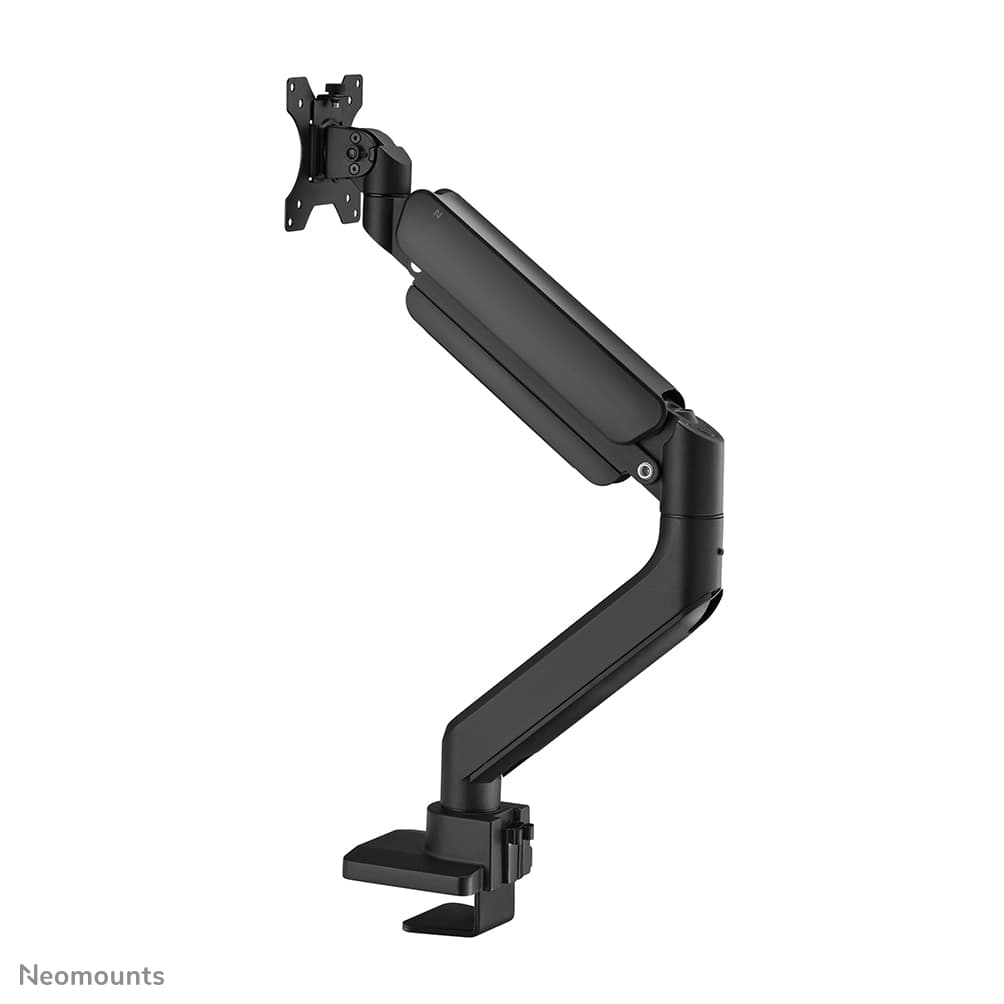

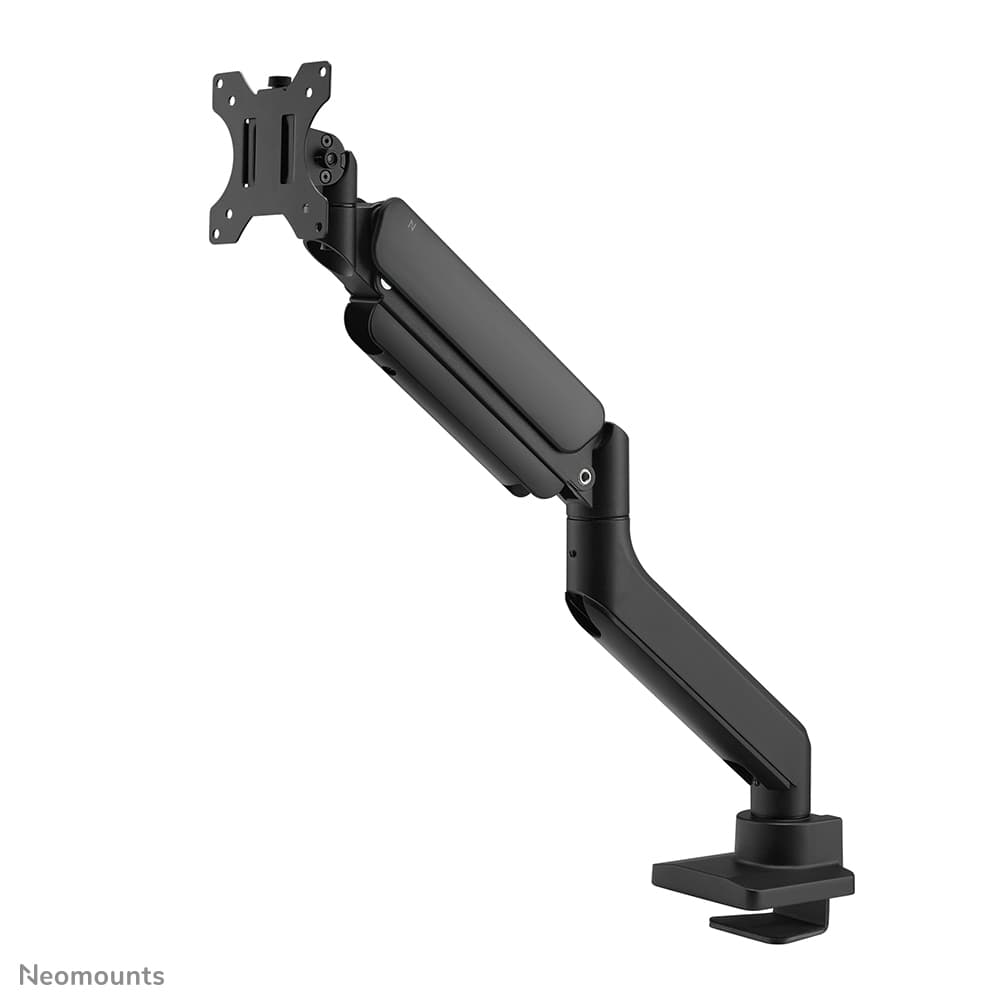

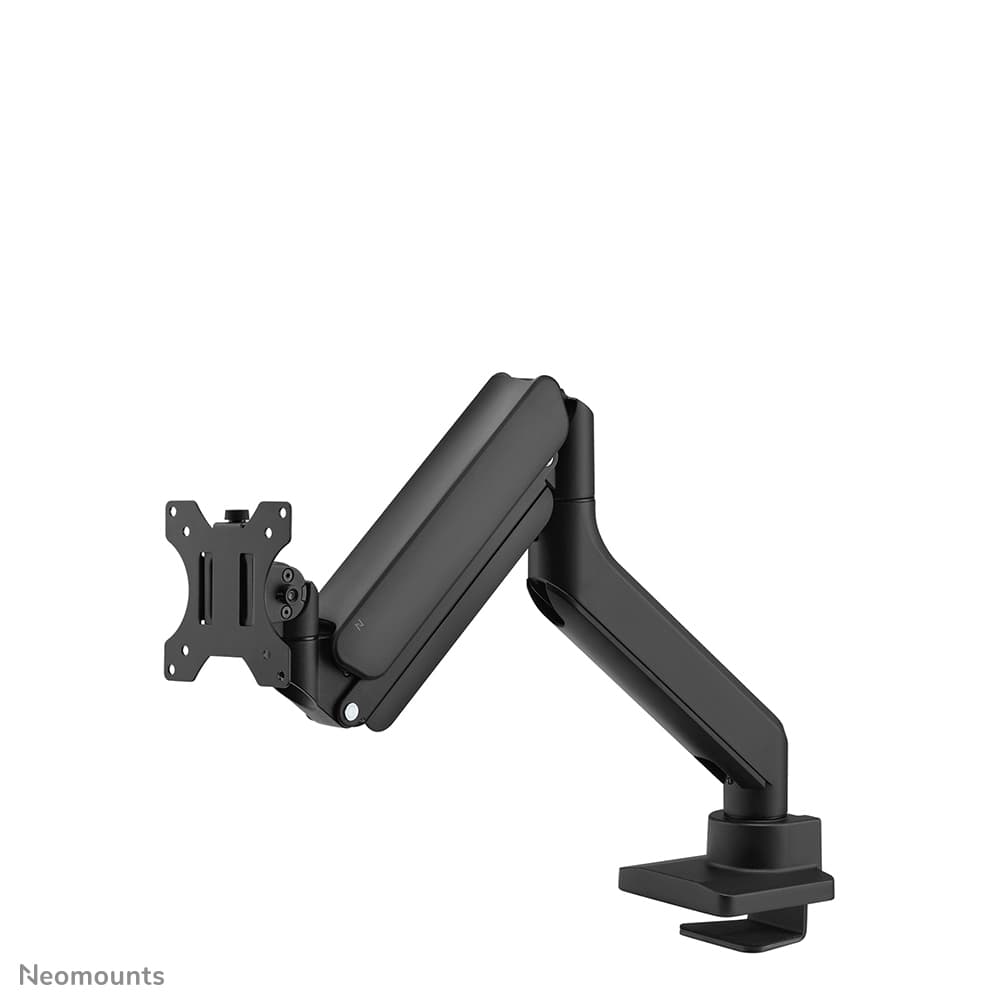

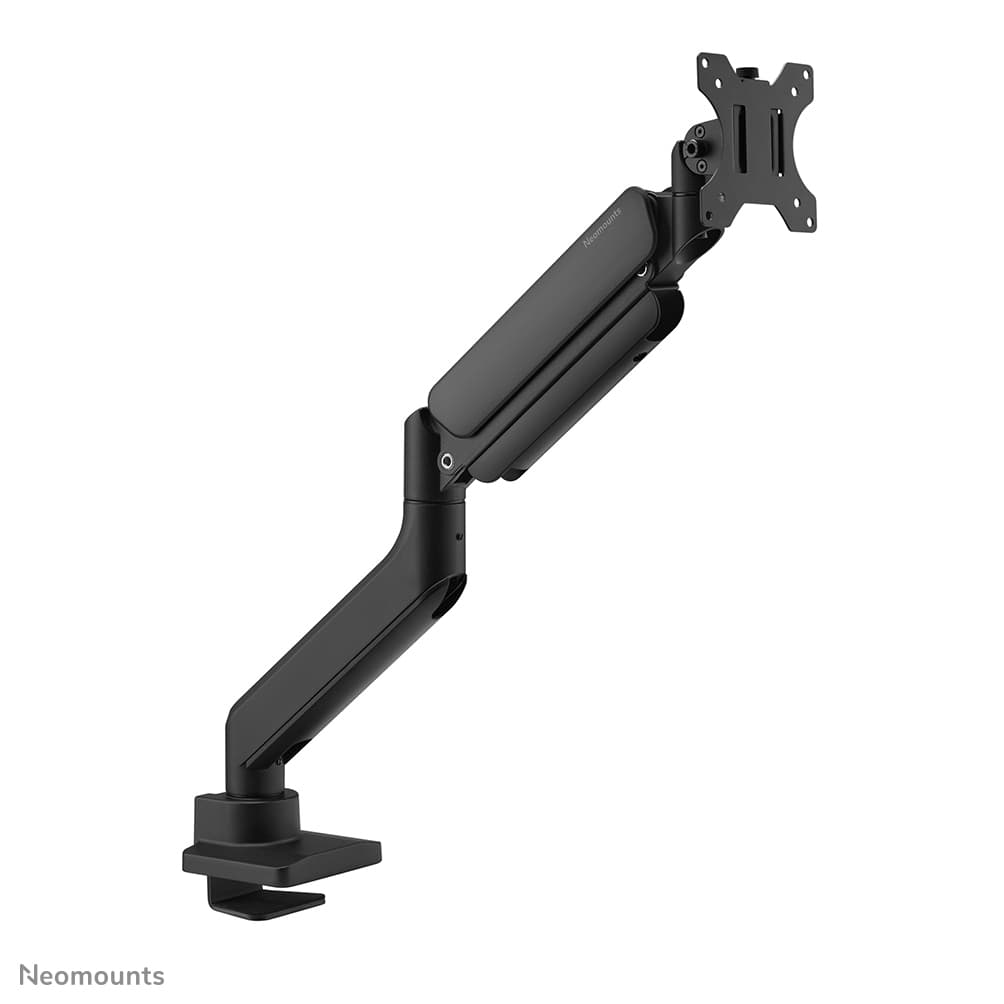

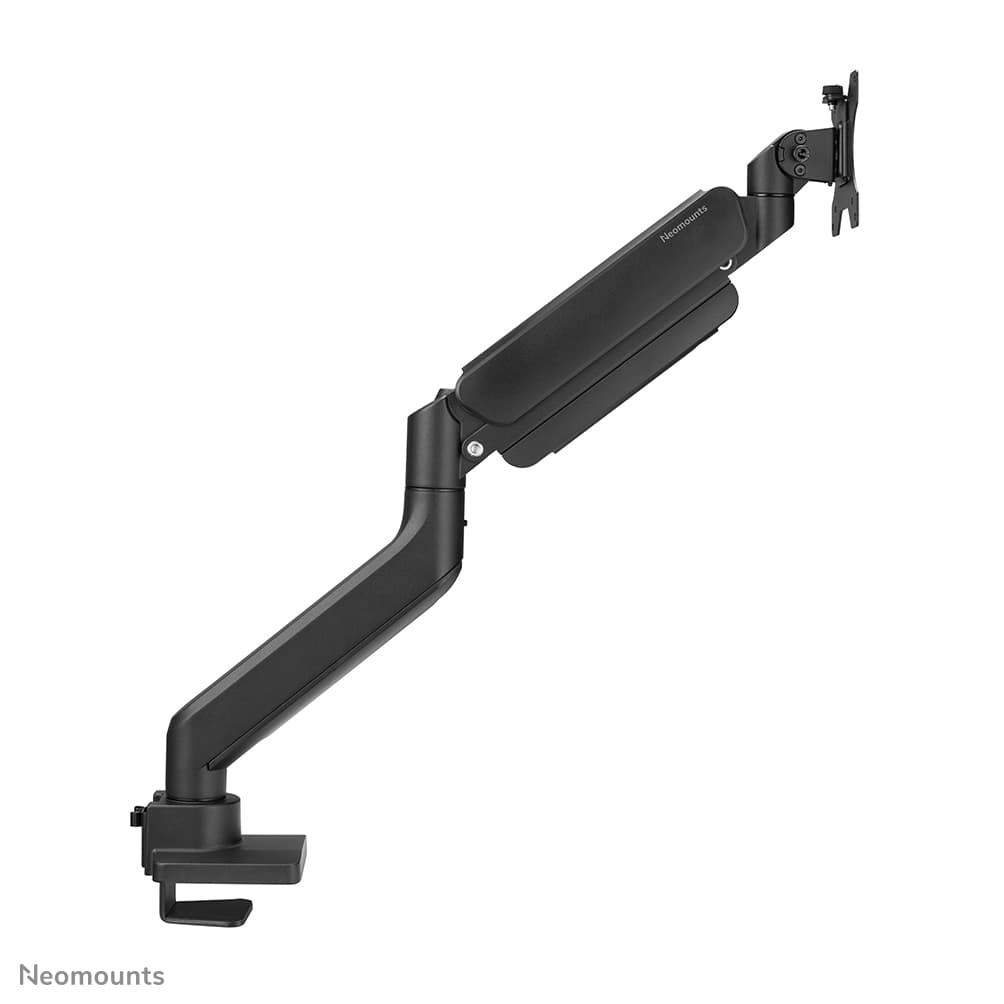

Neomounts DS70PLUS-450BL1 Monitor Arm
€ 161,45incl. 21% VAT
Low stock · 8
Goes well with
Business or larger quantities? Request a quote

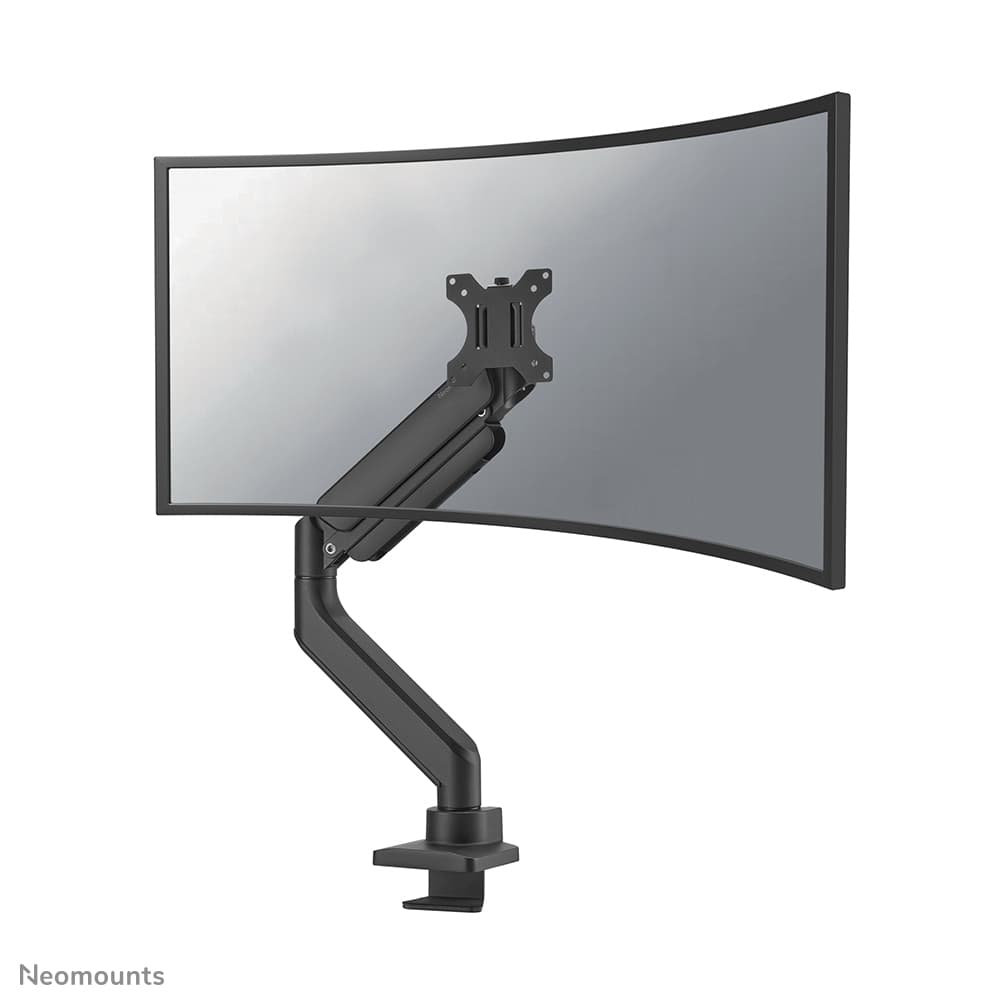

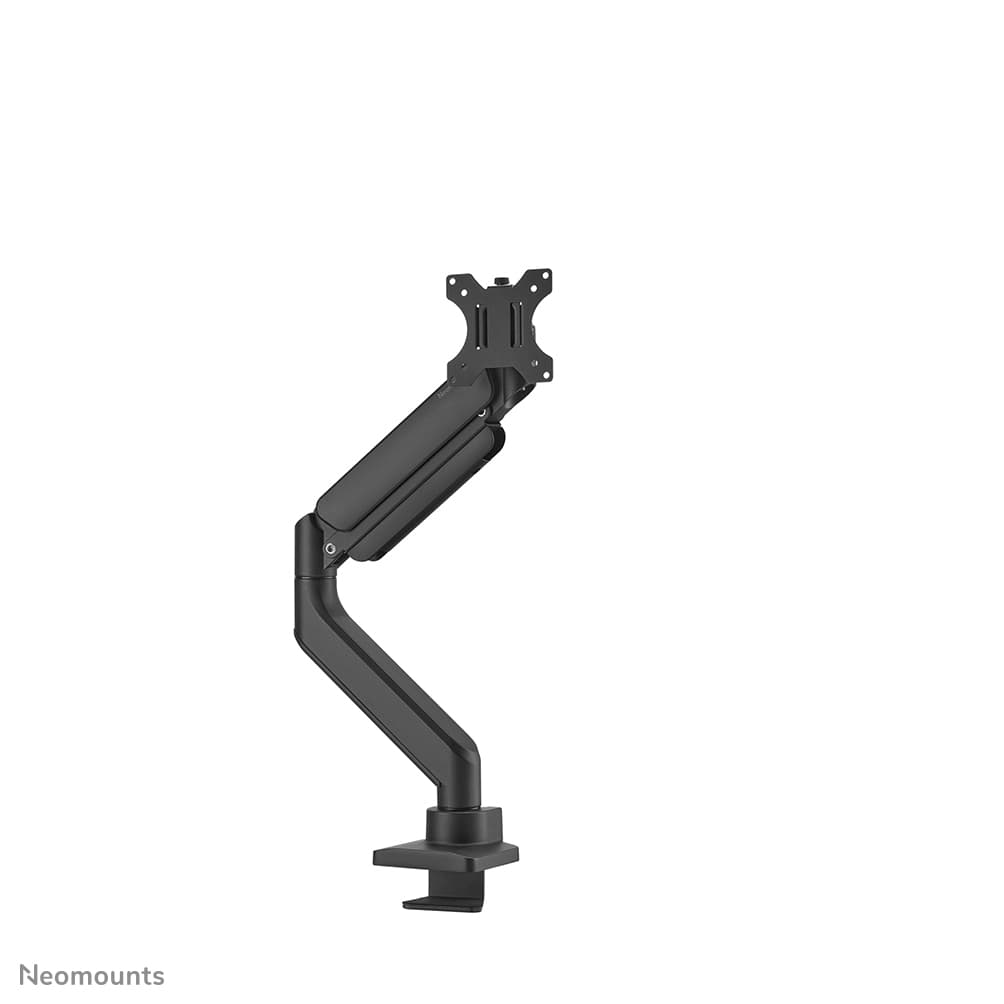

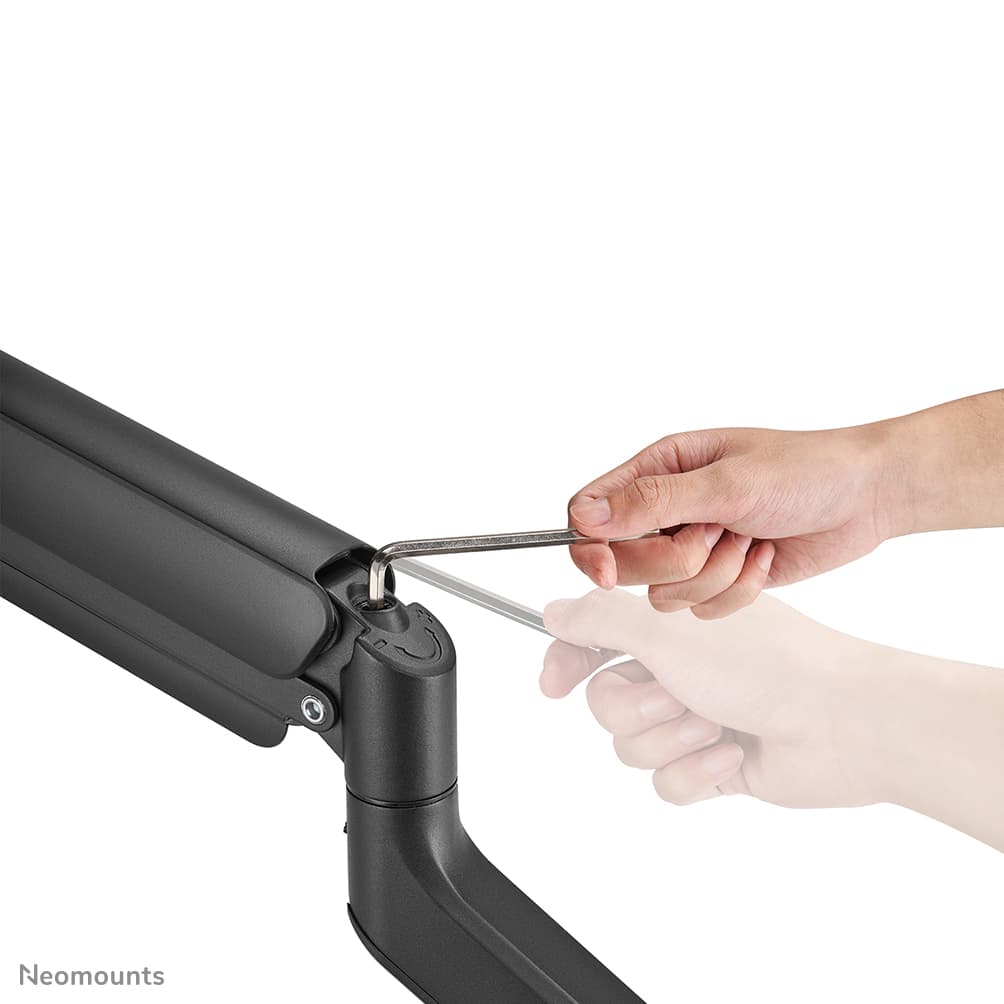

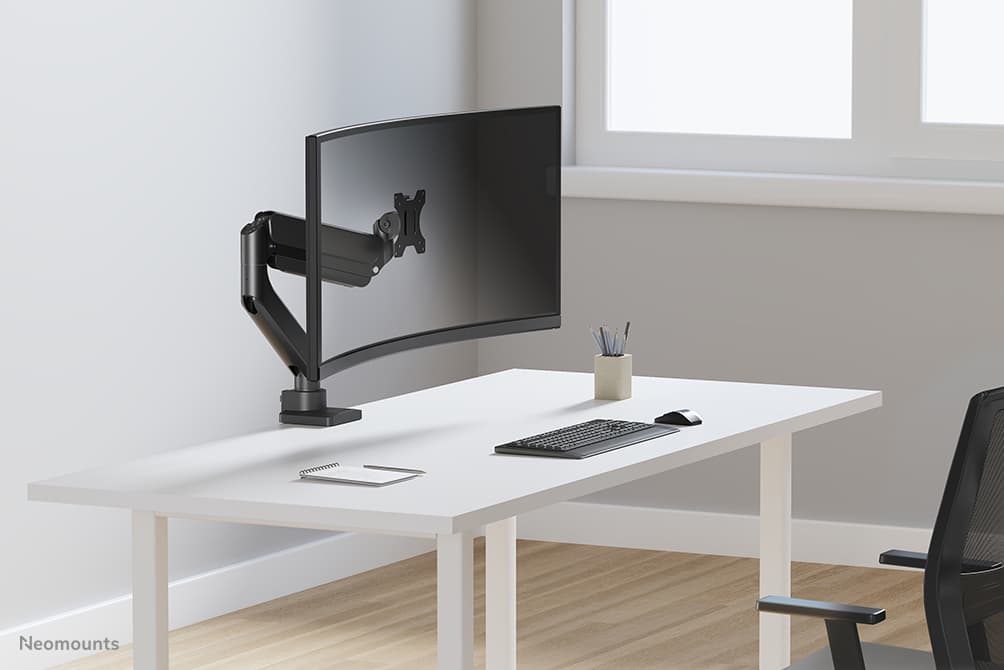

The Neomounts DS70PLUS-450BL1 is a full-motion monitor arm for screens 17" to 49". Featuring a gas spring mechanism and Topfix technology, it supports up to 18 kg. Mounts via clamp or grommet, compatible with 75x75 mm to 100x100 mm mounting interfaces. Adjustable height, 180° rotation, and -45° to +45° tilt. Sleek black design for any workspace.
EAN
8717371441654
Number of displays supported
1
Maximum carrying capacity (per display/monitor)
18 kg
Maximum screen size
124,5 cm (49")
Mounting Method
Office
Maximum weight capacity
18 kg
Minimum screen size
43,2 cm (17")

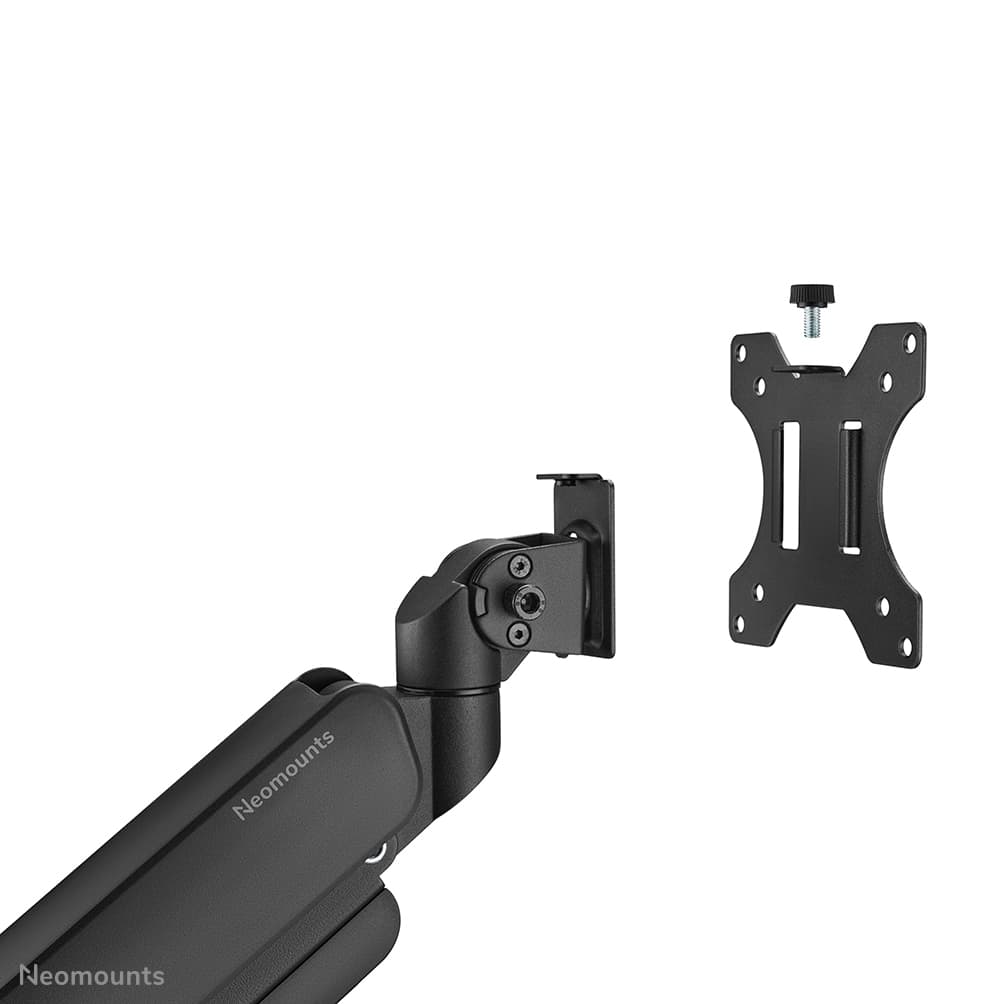

Mounting interface compatibility (min)
75 x 75 mm
Mounting interface compatibility (max)
100 x 100 mm
Maximum Weight Capacity (per curved/ultrawide display)
14 kg

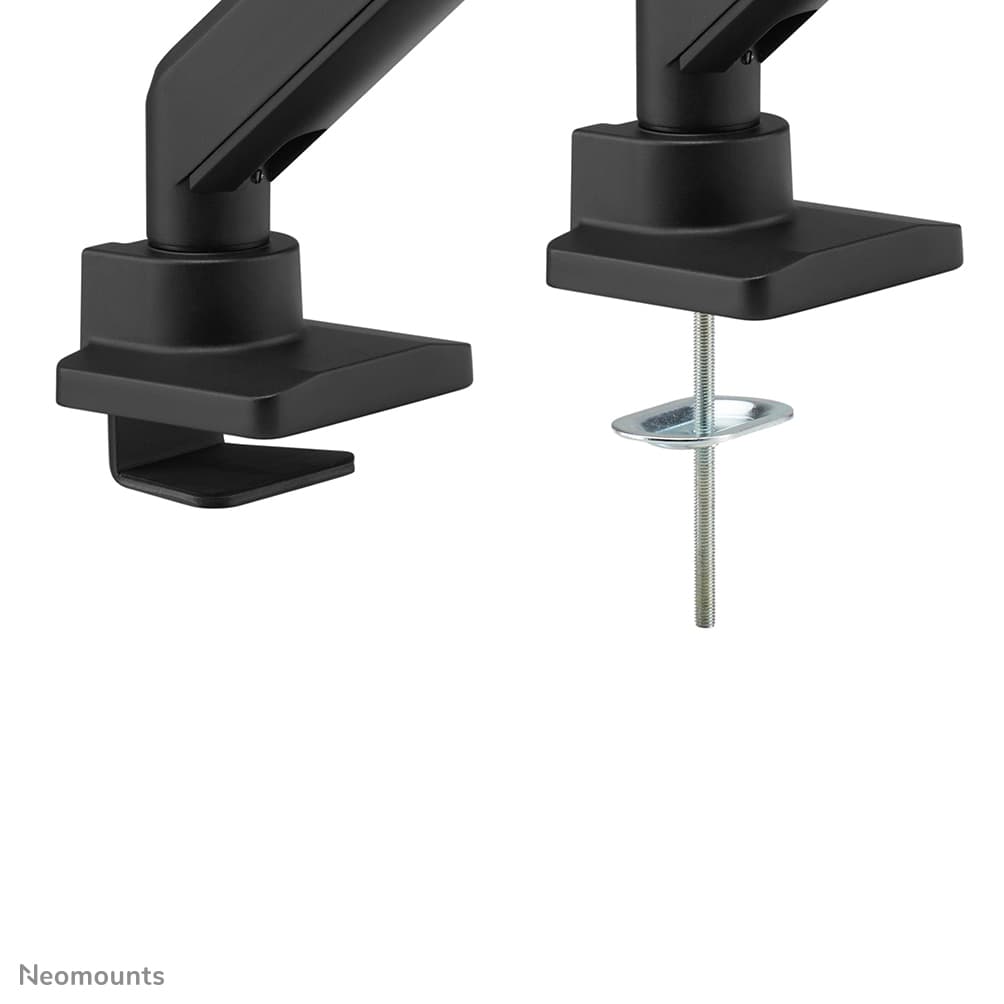

Mounting
Clamp/Guide
Panel mounting interface
100 x 100,75 x 75 mm
Desk Thickness (min)
1 cm
Desk Thickness (max)
4,5 cm
Distance to the wall (min)
10,8 cm
Distance to the wall (max.)
56,8 cm

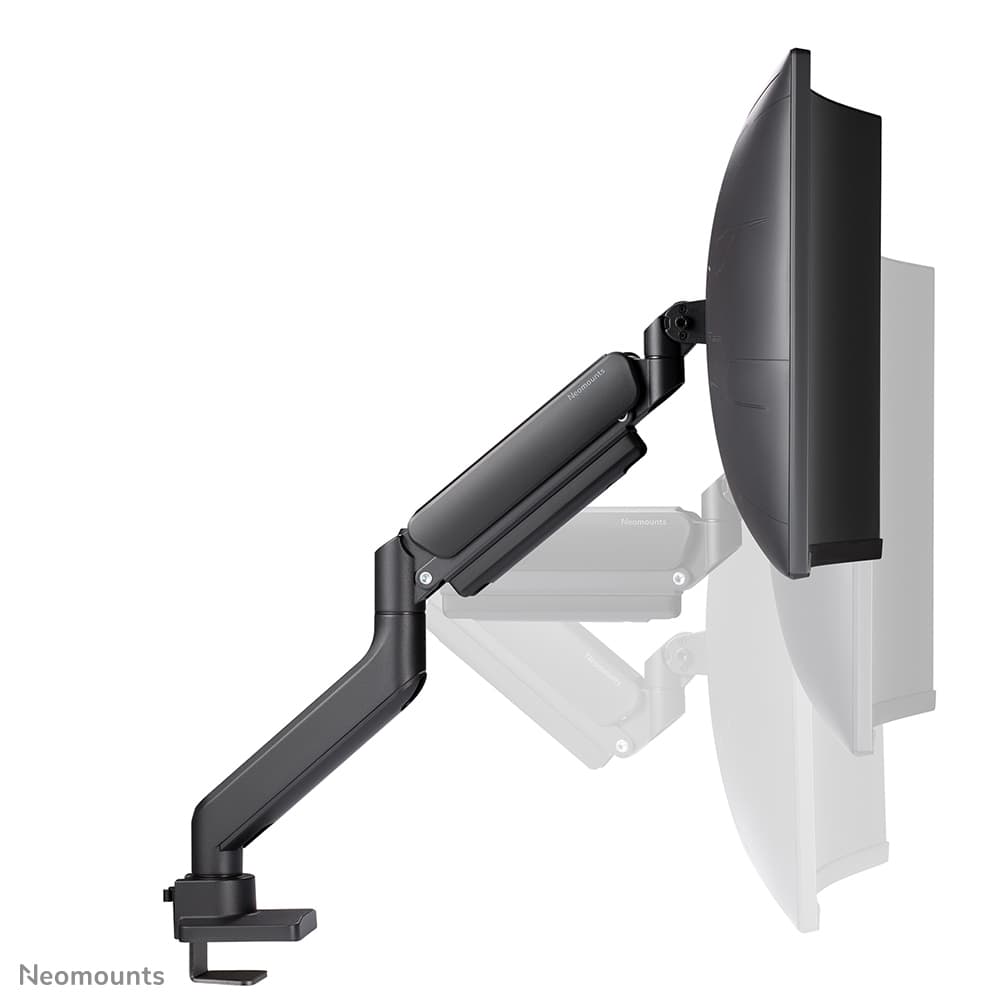

Adjustable in height
Yes
Height adjustment type
Gasket Spring
Height Adjustability Range
261 - 555 mm
Adjustable Depth
Yes
Depth Adjustment Range
54 - 511 mm
Width Adjustment
92 cm
Tilt adjustments
Yes
Corner Reach
-45 - 45°
Rotatable
Yes
Horizontally Rotatable
-90 - 90°
Rotation
Yes
Swivel Angle
360°
Pivot angle
-180 - 180°

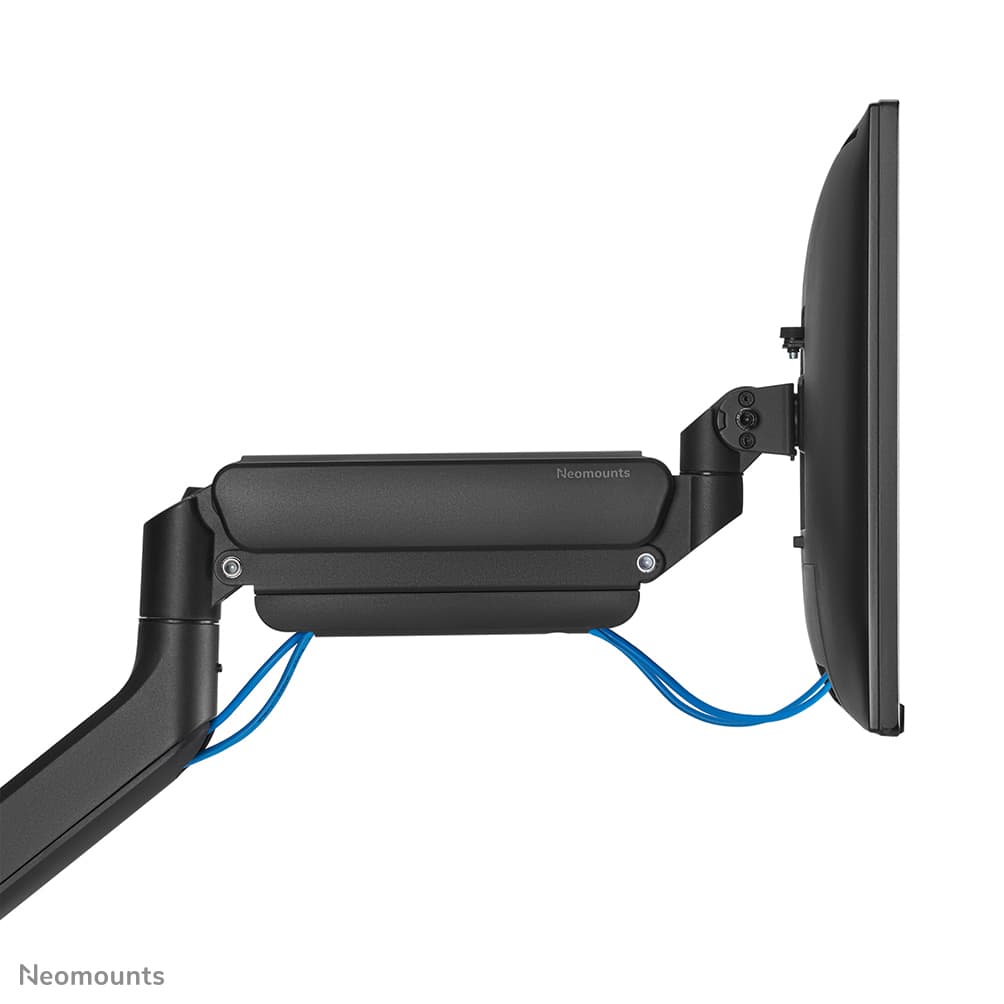

Improved cable management
Yes
Product color
Black
Material of the housing
Steel
Depth
568 mm
Weight
3,98 kg
Quantity per packaging
1 piece(s)
Package width
280 mm
Package depth
127 mm
Package height
445 mm
Package weight
5,1 kg

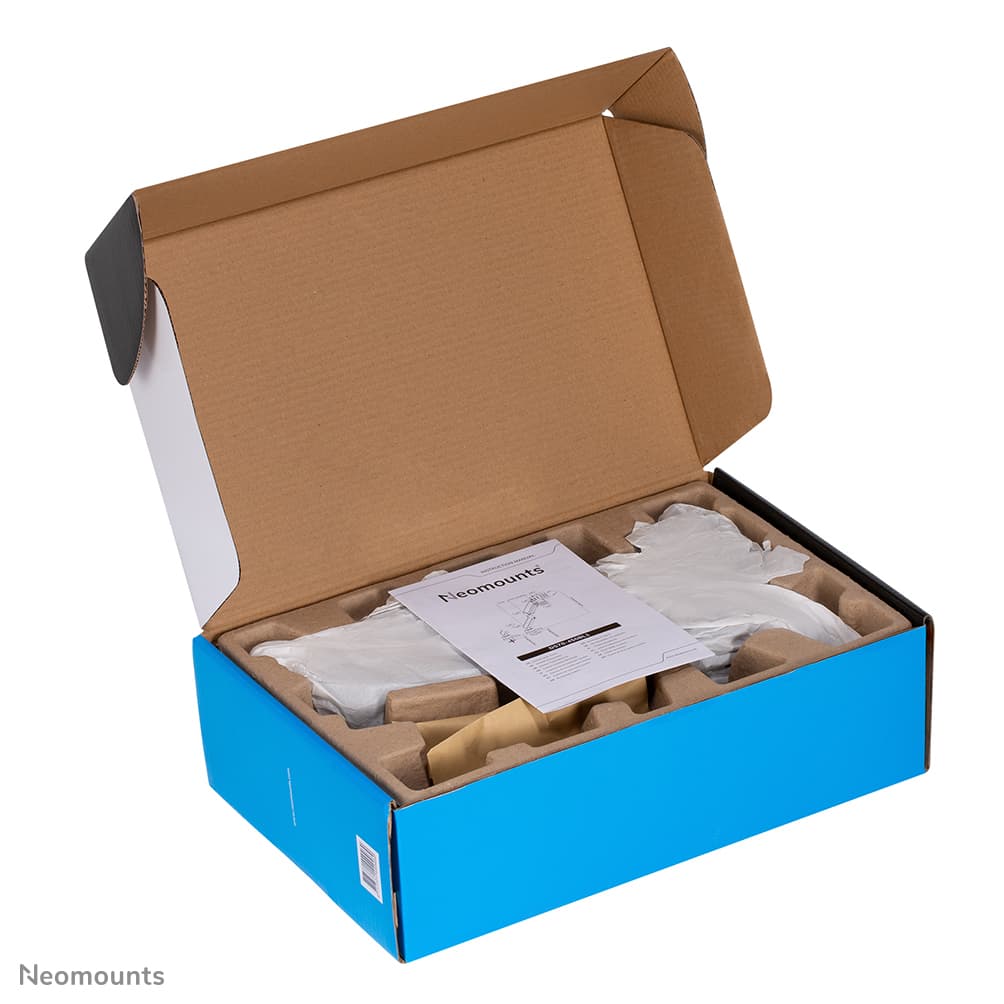

Packaging type
Box
Minimum Weight
1 kg
Adjustable Width Range
0 - 920 mm
(External) Main Packaging Width
460 mm
Main Packaging Length
275 mm
Main Packaging Height
580 mm
(Outer) Main Packaging Gross Weight
20,5 kg
Quantity per (outer) main packaging
4 unit(s)
Net weight cardboard box
16 kg
Harmonized System Code (HS)
7326909890
Products per pallet (EU)
64 piece(s)
Net Weight Package
5,1 kg
