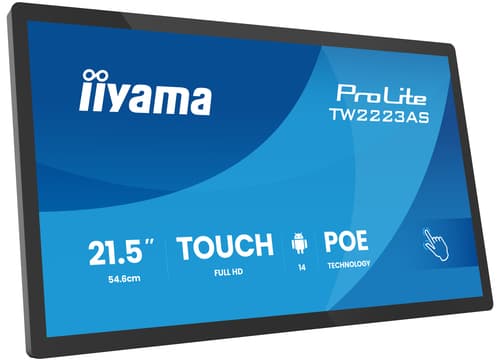

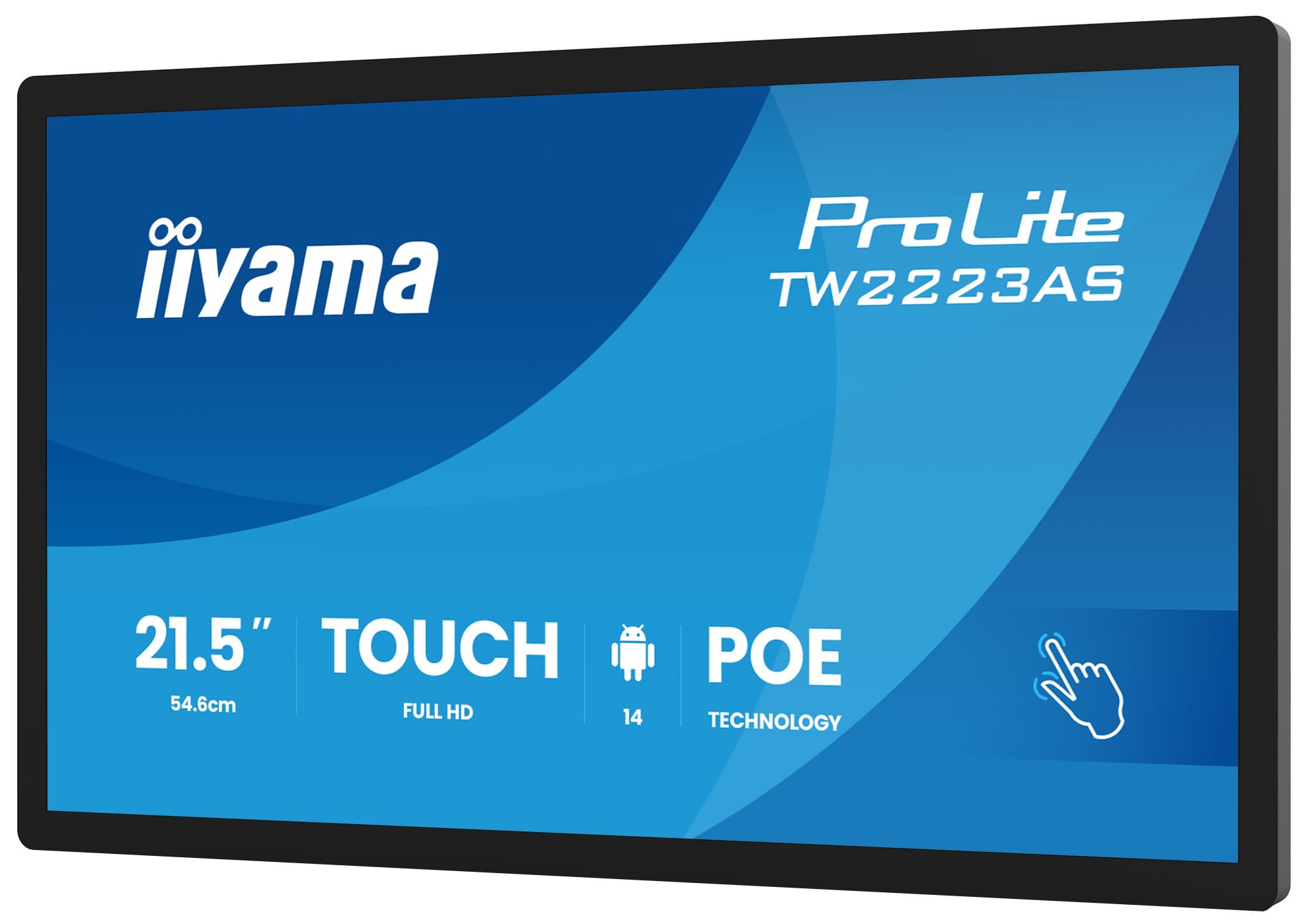

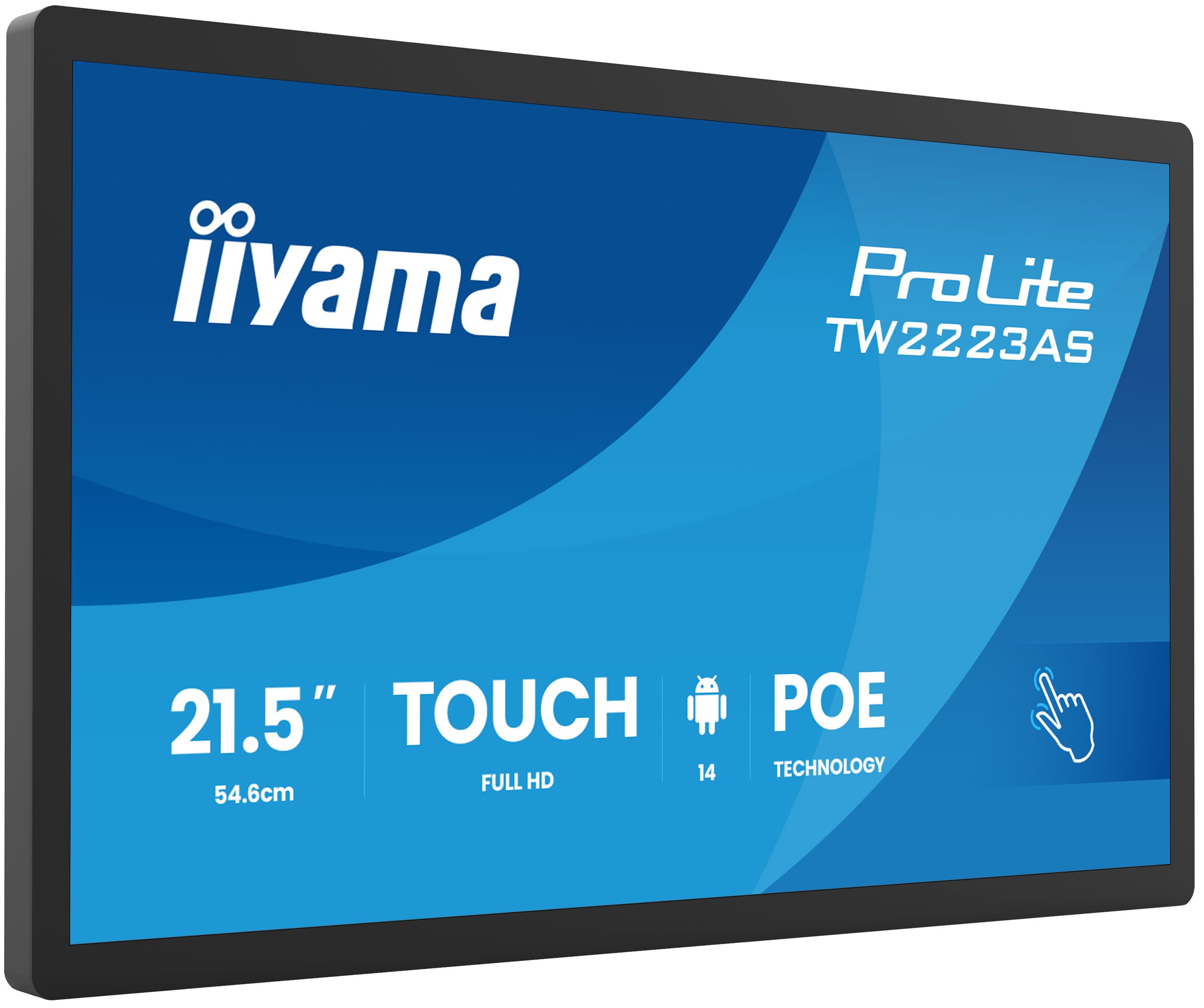

IIYAMA · TW2223ASB3
ProLite 22 inch Full HD Touchscreen Monitor - 1920x1080 - 24/7 - Android
€ 442,86incl. 21% VAT
In stock · 20
Goes well with
Business or larger quantities? Request a quote
The ProLite 22 inch Full HD Touchscreen monitor features a 54.6 cm (21.5") diagonal screen with 1920 x 1080 resolution. Its 450 cd/m² brightness and Full HD technology deliver sharp, vivid images. The touchscreen interface enables easy interaction, while built-in Wi-Fi provides wireless connectivity. Designed for 24/7 operation, this black monitor runs on the Android operating system, ideal for industrial or commercial use.
EAN
4948570127160
Screen diagonal
54,6 cm (21.5")
Resolution
1920 x 1080 Pixels
Brightness
450 cd/m²
Touchscreen
Yes
Panel Type
IPS
Touchscreen technology
Projected capacitive system
Number of simultaneous touch points
10
Response time
14 ms
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Monitor, Number of Colors
16.7 million colors
Pixel pitch
0,248 x 0,248 mm
Active display area (b x h)
476,1 x 267,8 mm
Horizontal frequency range
31 - 83 kHz
Color depth
8 Bit
Surface hardness
6H
Glass thickness
2,9 mm
DVI port
No
USB Port
Yes
Number of USB ports
3
USB connector type
USB Type-C
Number of Ethernet LAN (RJ-45) ports
1
Audio input (L, R)
2
Microphone, line-in input
Yes
Integrated memory card reader
Yes
Built-in Speakers
Yes
Average power
4 W
Product design
Interactive flatscreen
Product color
Black
Support for Placement
Inside
VESA Mounting
Yes
Model
Horizontal/Vertical
Screen shape
Flat
VESA size
100 x 100 mm
Bezel color
Black
Intended for
Universal
Operating Hours (hours/days)
24/7
HDCP
Yes
Mean time between failures (MTBF)
50000 hours
Power Consumption (Typical)
15,4 W
Power consumption (in standby)
0,5 W
Power consumption (when off)
0,3 W
Power over Ethernet (PoE)
Yes
System on a Chip
Yes
Processor type
Yes
Processor family
ARM Rockchip
Processor model
Rockchip RK3576
Internal memory
4 GB
Internal Storage Capacity
32 GB
Includes Operating System
Android
Operating System Version
14
Google Applications
Google Chrome, Gmail, Google Calendar
Screen Width
504,5 mm
Display Depth
32 mm
Display Height
302 mm
Display Weight
3,64 kg
Depth
32 mm
Weight
3,64 kg
Device Width (Standard)
504,5 mm
Device Depth (with standard)
32 mm
Device Height (with standard)
302 mm
Device Weight (with standard)
3,64 kg
Package width
580 mm
Package depth
375 mm
Package height
126 mm
Package weight
6 kg
Included cables
AC
Ethernet LAN
Yes
Wi-Fi
Yes
Ethernet LAN, data transfer speeds
1000 Mbit/s
Sustainability Certifications
ErP
Compliance Certificates
CE, EAC, REACH, RoHS, UKCA, WEEE
Quick Start Guide
Yes
Includes AC Adapter
Yes
Bluetooth
Yes
Bluetooth version
5.3
Screen size (horizontal)
47,6 cm
Screen size (vertical)
26,8 cm
Brightness
450 cd/m²
Compatible Operating Systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Power Supply Type
External
Improved cable management
Yes
User buttons
Power switch, Volume button +, Volume button -
