EATON · 9PX8KIRTNB

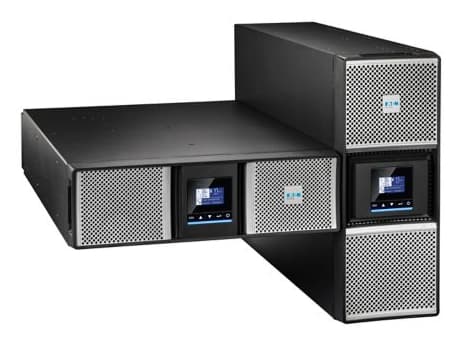

Eaton 9PX 8000i RT4U HotSwap Netpack G2
€ 7978,74incl. 21% VAT
Out of stock
Business or larger quantities? Request a quote
The Eaton 9PX Gen2 UPS HotSwap Netpack provides 8000 VA / 8000 W power protection with double conversion (online) technology. Features 4 C39 outputs and hardwired input. Equipped with VRLA batteries (12 V, 9 Ah) for reliable backup. The 4U rack/tower unit is available in black/silver and certified with BSMI, CE, and IEC/EN 62040. Key specs: 8 kVA output, C13/C19 outlets, 4U rack capacity.
EAN
3553340710605
UPS Topology
Double conversion (online)
Output power capacity
8 kVA
Output Power
8000 W
Waveform
Sinusoidal
Input Operating Voltage (Min)
100 V
Input Operating Voltage (Max)
276 V
Frequency
40/70 Hz
Output Operating Voltage (Min)
200 V
Output Operating Voltage (Max)
240 V
Output Frequency
50/60 Hz
Average power consumption (operational result)
214 W
Heat Dissipation
728 BTU/h
Number of Input Phases
1
Number of output phases
1
Efficiency
97,3 procent
Efficiëntie (ECO-modus)
99.5 percent
Input vermogensfactor
0,99
Sound Level
37 dB
Socket Types
C13 plug, C19 plug
USB Port
Yes
RS-232 Port
1
Battery Capacity
9 Ah
Typical backup time on half charge
15,2 min
Automatic battery test
Yes
Form factor
Rack mounting/tower
Product color
Black, Silver
Rack capacity
4U
Cable length
1,8 m
Display type
LCD
LED indicators
Yes
Operating temperature (T-T)
0 - 40 °C
Height, in operation
0 - 3000 m
Compliance Certificates
BSMI, CE, Elektromagnetische compatibiliteit (EMC), KCC, Laagspanningsrichtlijn (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus
Certification
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3
Rack Mounting Kit
Yes
Included cables
Output Current Cable, USB Cable
Quick Installation Manual
Yes
Sustainability Certifications
ENERGY STAR
Depth
725 mm
Weight
83,4 kg
