EATON · 9PX5KIRTNG

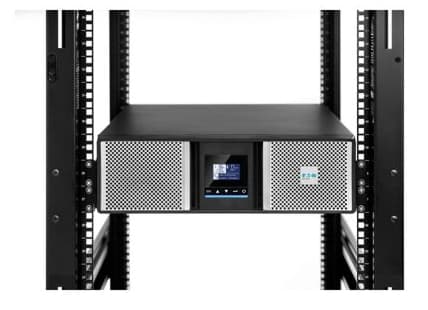

EATON 9PX 5000i RT3U Netpack G2
€ 5429,03incl. 21% VAT
Out of stock
Business or larger quantities? Request a quote
The Eaton 9PX 5000i RT3U Netpack G2 is an online double-conversion UPS with 5 kVA (5000 W) output power. It features C13 outlets, hardwire, and C39 coupler connections. The integrated sealed lead-acid (VRLA) battery has a capacity of 5 Ah and 12 V. The unit is rack-mountable (3U) in black-silver color. Certified for CB, CE, EMC, LVD, RCM, REACH, and RoHS, it complies with IEC/EN 62040-1, -2, and -3 standards.
EAN
3553340710551
UPS Topology
Double conversion (online)
Output power capacity
5 kVA
Output Power
5000 W
Waveform
Sinusoidal
Input Operating Voltage (Min)
100 V
Input Operating Voltage (Max)
276 V
Frequency
40/70 Hz
Output Operating Voltage (Min)
200 V
Output Operating Voltage (Max)
240 V
Output Frequency
50/60 Hz
Average power consumption (operational result)
165 W
Heat Dissipation
563 BTU/h
Number of Input Phases
1
Number of output phases
1
Efficiency
96,7 procent
Efficiëntie (ECO-modus)
99 percent
Input vermogensfactor
0,99
Sound Level
40 dB
Socket Types
C13 stekker, Hardwire, C39 coupler
USB Port
Yes
RS-232 Port
1
Network Card Slot
Yes
Battery Capacity
5 Ah
Typical backup time on half charge
9,4 min
Automatic battery test
Yes
Form factor
Rack mounting/tower
Product color
Black, Silver
Rack capacity
3U
Cable length
1,8 m
Display type
LCD
LED indicators
Yes
Operating temperature (T-T)
0 - 40 °C
Height, in operation
0 - 3000 m
Compliance Certificates
CB, CE, Elektromagnetische compatibiliteit (EMC), Laagspanningsrichtlijn (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus
Certification
IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3
Included cables
USB cable
Quick Installation Manual
Yes
Sustainability Certifications
ENERGY STAR
Depth
684 mm
Weight
43,1 kg
